MIP Reverse Circulation Fishing Magnet

Application

MIP Reverse Circulation Fishing Magnet captures and recovers bit cones, bearings, broken slips, various hand tools, debris from twisted-off drill pipes, mill cuttings, etc. from the wellbore.

Design

The Reverse Circulation Fishing Magnet is available in left- and right-hand configurations.
Guide is available in three options: milling guide, cutlip guide and mule shoe.
Reverse circulation helps to clean fish off dirt and bring the fish closer to the magnet.

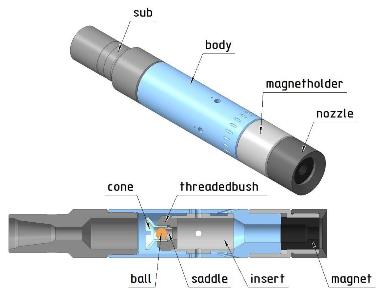

Images and Dimensions

Technical data

To cart	Code	Connection, API	External diameter of body, in	Load capacity, lbf
	MIP-94	NC 26	3-11/16	474
	MIP-112	2-7/8 Reg	4-7/16	771.6
	MIP-119	2-7/8 Reg	4-11/16	771.6
	MIP-130	NC 38	5-1/8	1 213
	MIP-150	NC 38	5-7/8	1 323
	MIP-196	NC 50	7-11/16	1 984
	MIP-206	NC 50	8-1/8	2 205
	MIP-257	NC 50	10-1/8	2 205

You can specify the size of an item on the checkout page.
