PS-K Conical Impression Block

Application

PS-K conical lead impression block is used to determine position of a fish in the pipe string, and borehole obstructions during remediation in oil, gas and exploratory wells.

Design

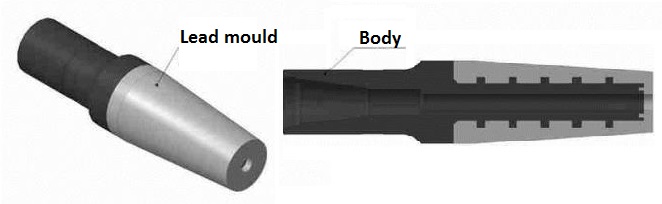

The conical lead impression block consists of a body molded with lead. The mold has conical form. The upper part of the body has thread to connect to the string. The impression block has a central watercourse for circulation. The block is made up on the pipe string and run into the wellbore. Due to lead plasticity, obstruction leaves an impression on the block`s soft material.

Images and Dimensions

Technical data

To cart	Code	OD, in	Minimal D of cone, in	Watercourse OD, in	Length, ft	Connection, API	Weight, lb
	PS-41K	1-5/8	9/16	-	0.89	SH-19	4.63
	PS-45K	1-3/4	5/8	-	0.92	SH-19	5.51
	PS-54K	2-1/8	1-1/8	-	1.07	NC 13	9.7
	PS-57K	2-1/4	1-3/16	3/16	1.07	NC 13	10.14
	PS-70K	2-3/4	1-3/16	3/16	1.15	NC 13	14.11
	PS-89K	3-1/2	1-13/16	3/16	1.39	2-3/8 Reg	35.72
	PS-98K	3-7/8	2.0	3/16	1.48	2-7/8 Reg	47.63
	PS-105K	4-1/8	2-1/16	3/8	1,64	2-7/8 Reg	57.77
	PS-121K	4-3/4	2-3/16	3/8	1,64	2-7/8 Reg	69.68
	PS-140K	5-1/2	2-1/2	3/8	1.64	3-1/2 Reg	88.2
	PS-203K	8.0	3-9/16	1.0	2.13	4-1/2 Reg	241.01
	PS-216K	8-1/2	3-15/16	1.0	2.13	4-1/2 Reg	266.8
	PS-292K	11-1/2	5-1/8	1-1/2	2.62	NC 50	543.31
	PS-299K	11-3/9	5-1/8	1-1/2	2.62	NC 50	560.9

You can specify the size of an item on the checkout page.
