MI Fishing Magnet

Application

MI fishing magnet retrieves small objects, having magnetic attraction.

Design

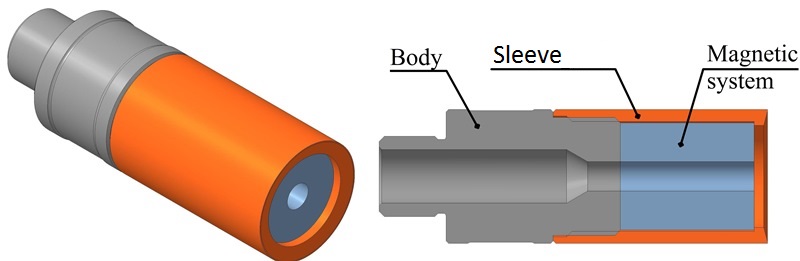

The fishing magnet consists of a sub, a body and magnetic system of directed action and a guide. The sub has tool joint thread at the upper end. The tool is available with three interchangeable guide options: washover shoe, cutlip guide, side-hill. The fishing magnet has a central watercourse for circulation.
The magnet is of directed action (at the lower end) and doesn’t require additional magnetization during operation.

Images and Dimensions

Technical data

To cart	Code	Guide ID, in	OD, in	Total length, ft	Load capacity, lbf	Connecting thread
	MI-46	-	1.81	0.48	209.48	M30x2
	MI-54	-	2.13	0.54	209.48	M12
	MI-62	-	2.44	1.52	209.48	M42x2
	MI-82	2.36	3.25	0.66	474.08	2-3/8 Reg
	MI-89	2.36	3.5	1.22	474.08	2-3/8 IF
	MI-102	3.23	4.02	1.28	771.75	3-1/2IF

You can specify the size of an item on the checkout page.
